Aquarius
解码器接口及功能：
输入接口：光纤、同轴、AES平衡、I2S*2、USB
输出接口：一组XLR平衡、一组RCA
standby:待机/开机按键
INPUT:信号输入选择按键
NOS:超取样开/关按键，指示灯灭为超取样；指示灯亮原采样率；
MUTE: 静音切换按键
Phase：相位切换
MODE:脚位切换
Aquarius
解码器特点描述：
R2R阵列DAC，真正的平衡
每级滤波具32Bit输入解析度
多个输入接口，满足不同人群使用需求

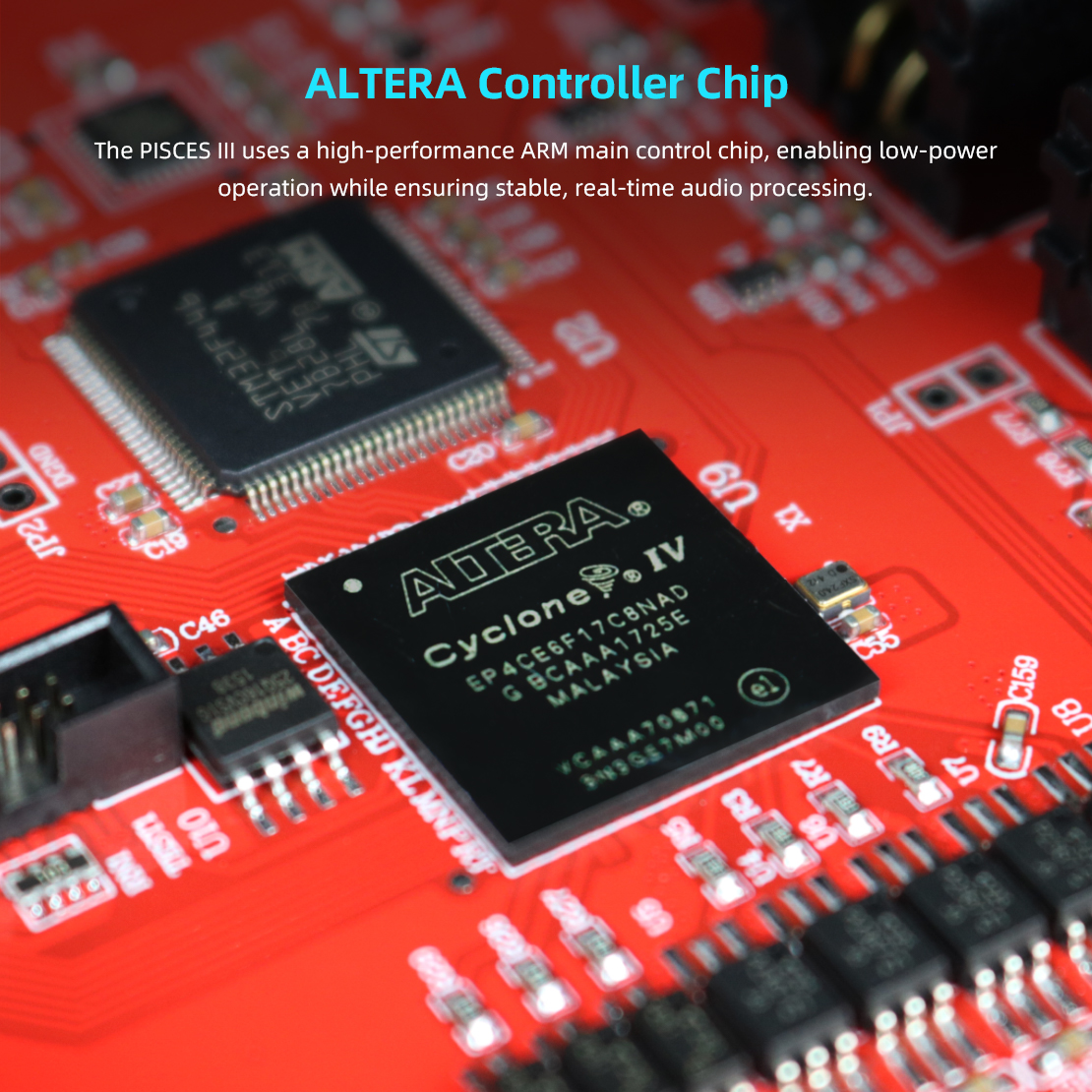

采用ALTER主控，恒温双晶振
封装线性电源，O芯变压器
整机功耗10W
Technical Highlights

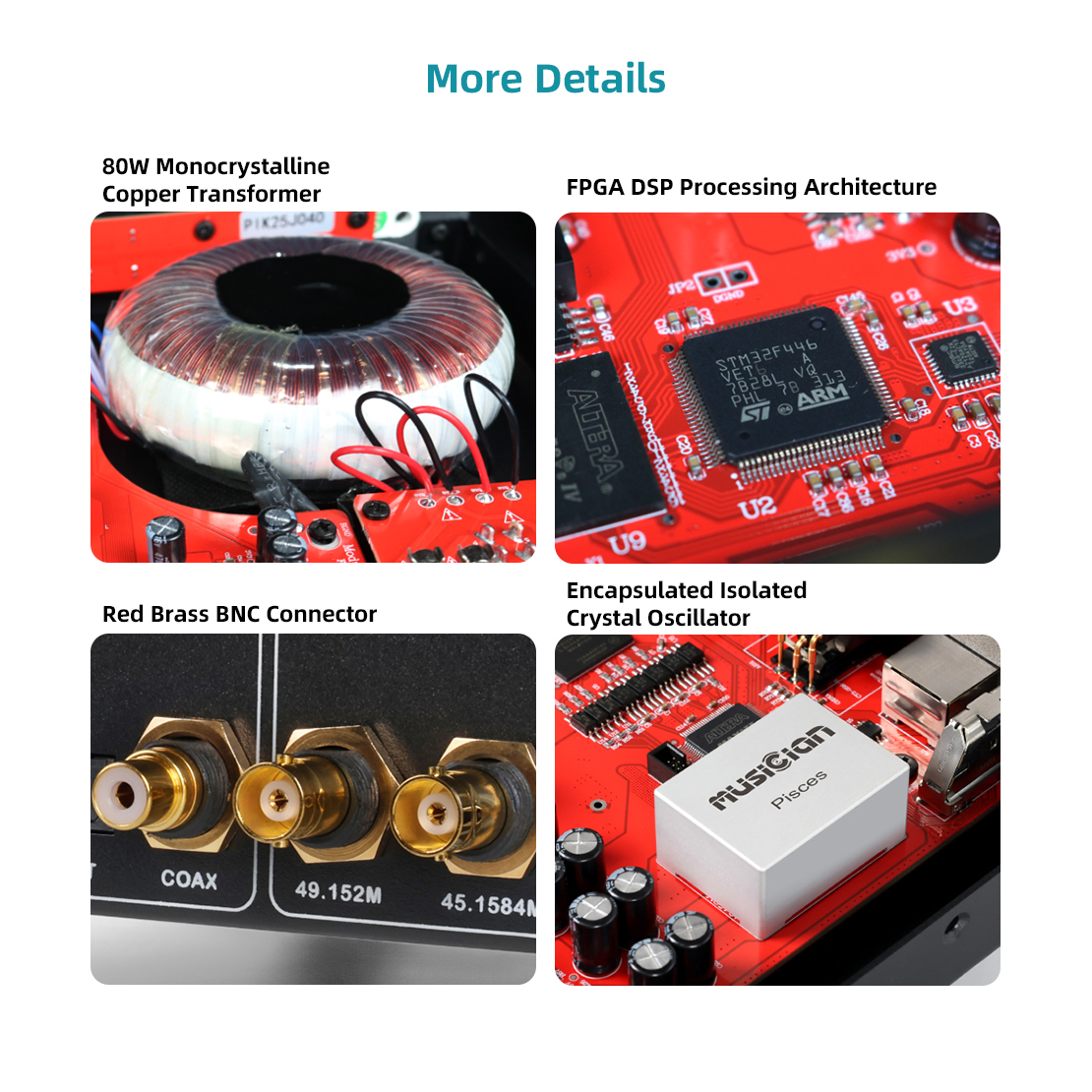

Proprietary FPGA DSP Processing Architecture
FIFO Buffer and Reclock with Internal Crystal
TCXO Temperature Compensated Crystal Oscillator
Optical Isolated All Digital Input Interfaces
Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
Licensed Thesycon USB Driver For Windows Platform
Driverless On Mac & Linux
External Clocks Input Supported
W 250 x D 235 x H 70mm (Height includes base)

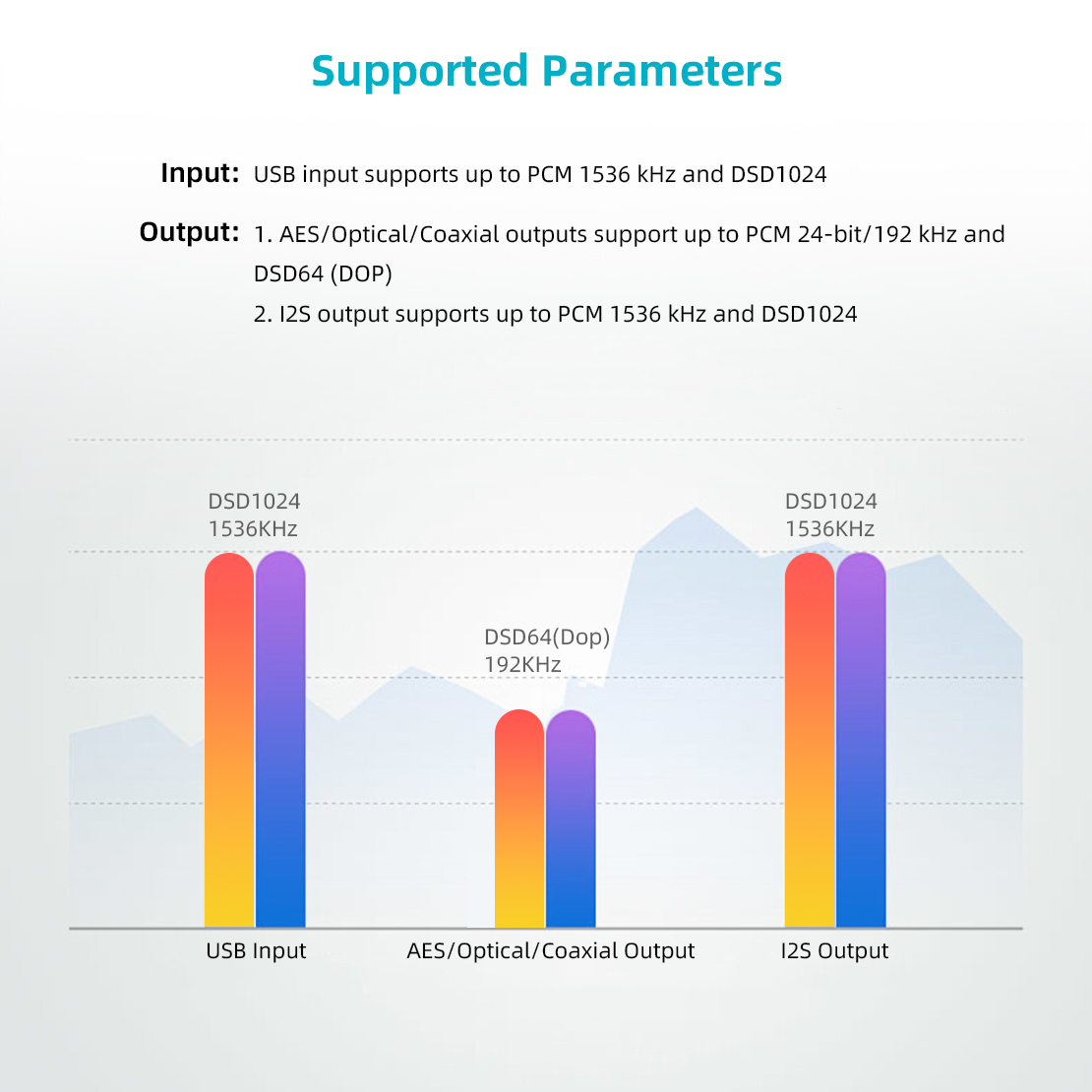

DSD
DSD64 (DoP) on Coax/AES/Opt Input & Output
Upto DSD512 On USB Input & I²S Output
PCM
24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input & Output
Up to 768KHz On USB Input & Up to 384KHz on I²S Output

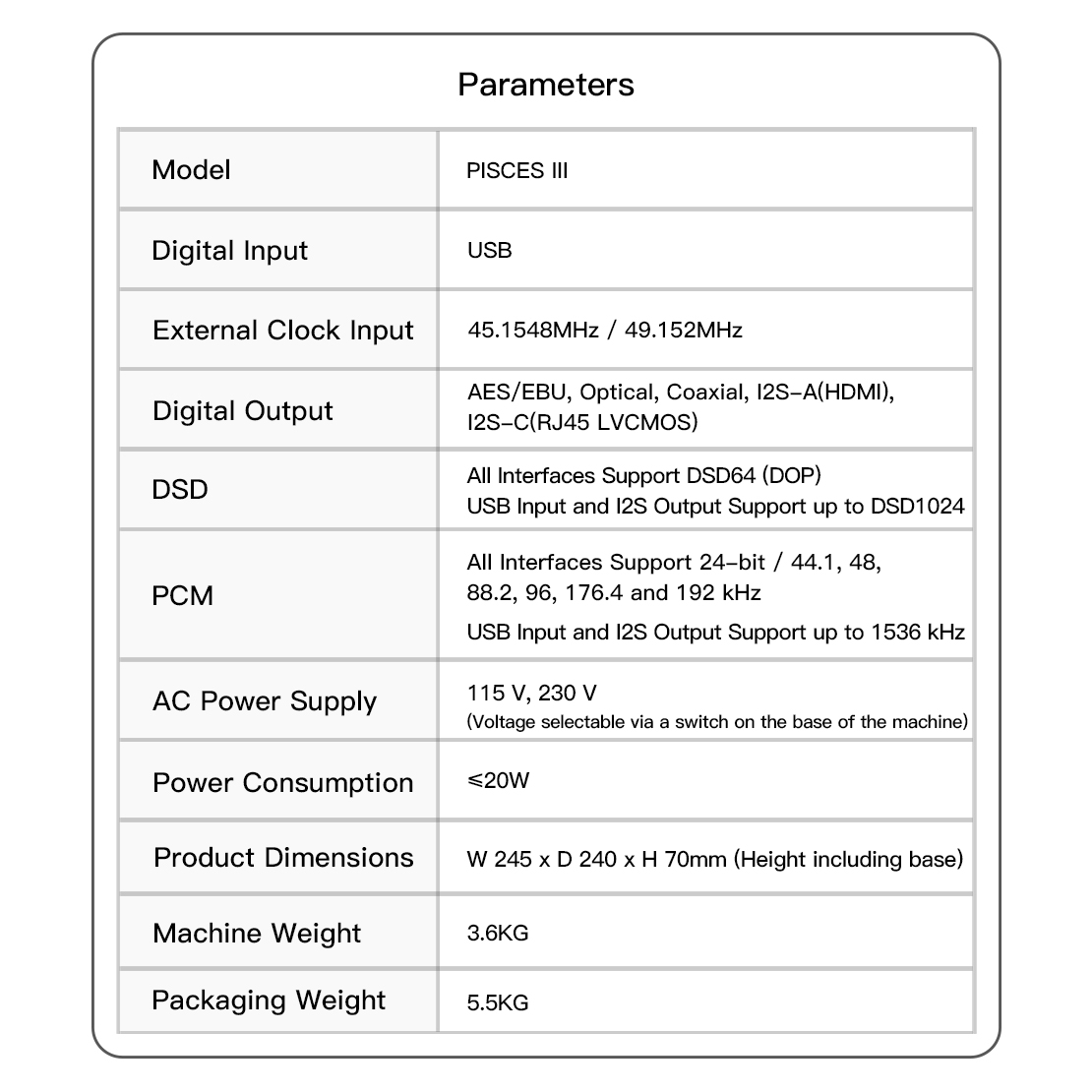

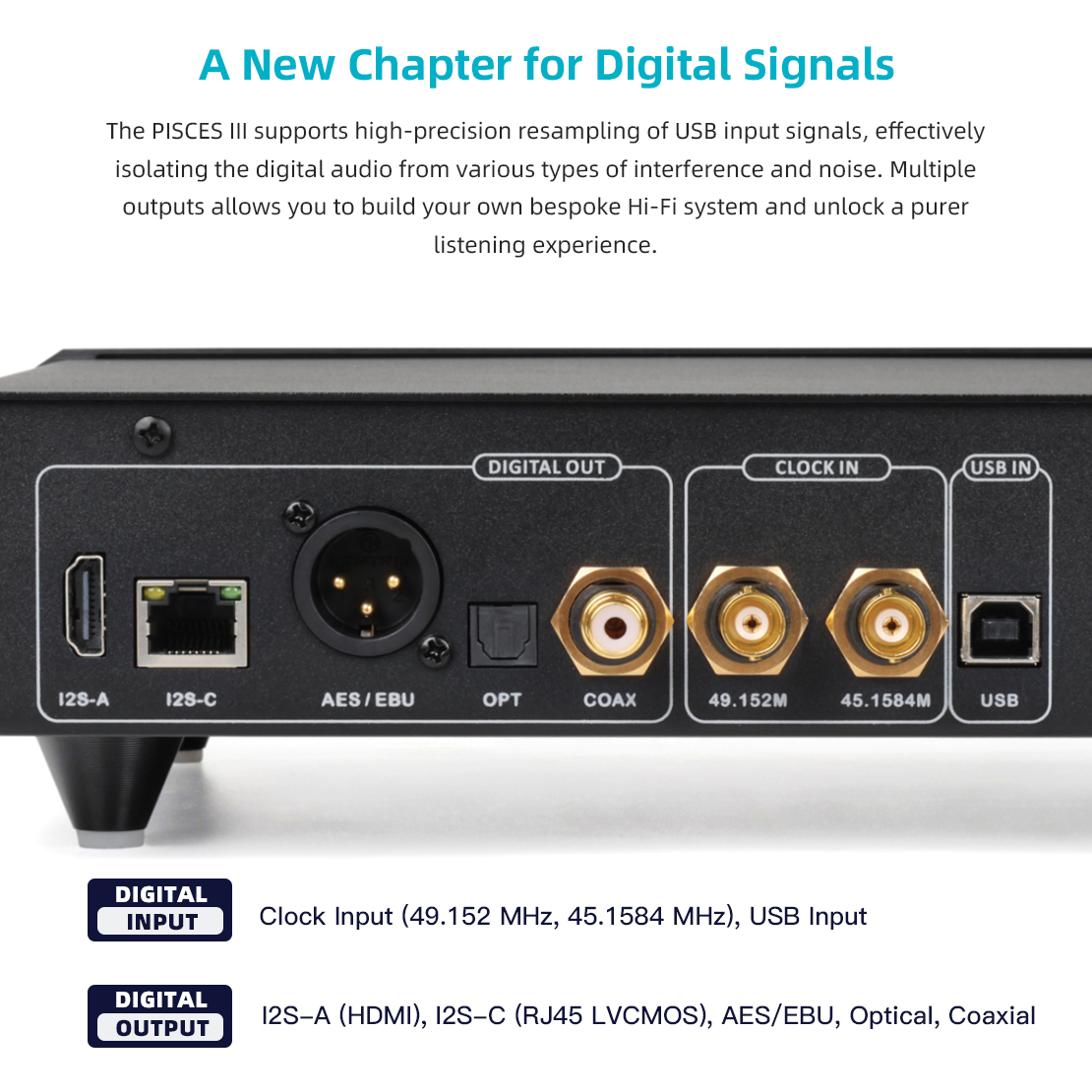

Digital Input
USB2.0 Type BClock Input
45.1548MHz，49.152MhzDigital Output
Coax SPDIF via RCA，TOSLink x 1，AES/EBU x 1,

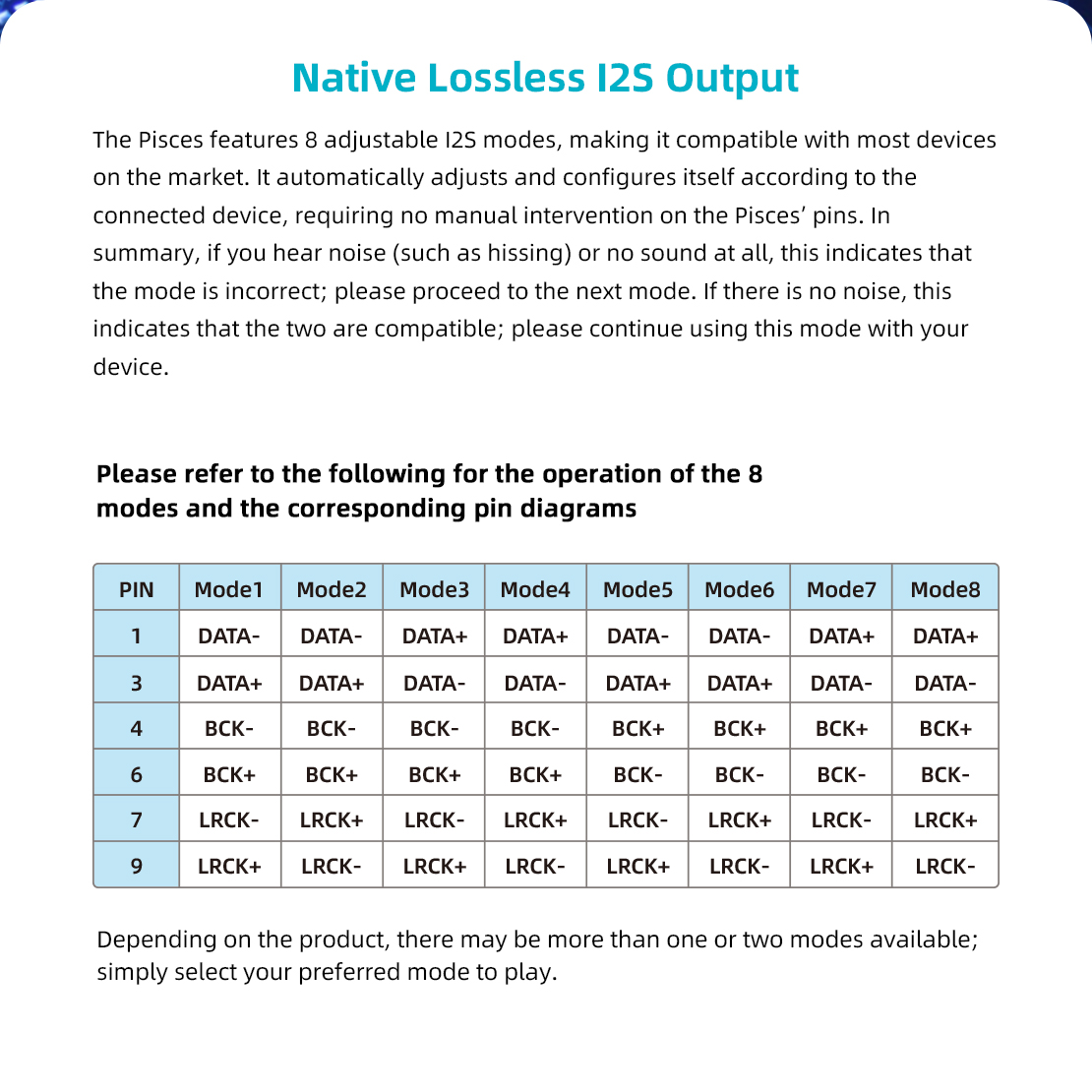

I²S HDMI LVDS Standard，I²S RJ45 LVCMOS Standard

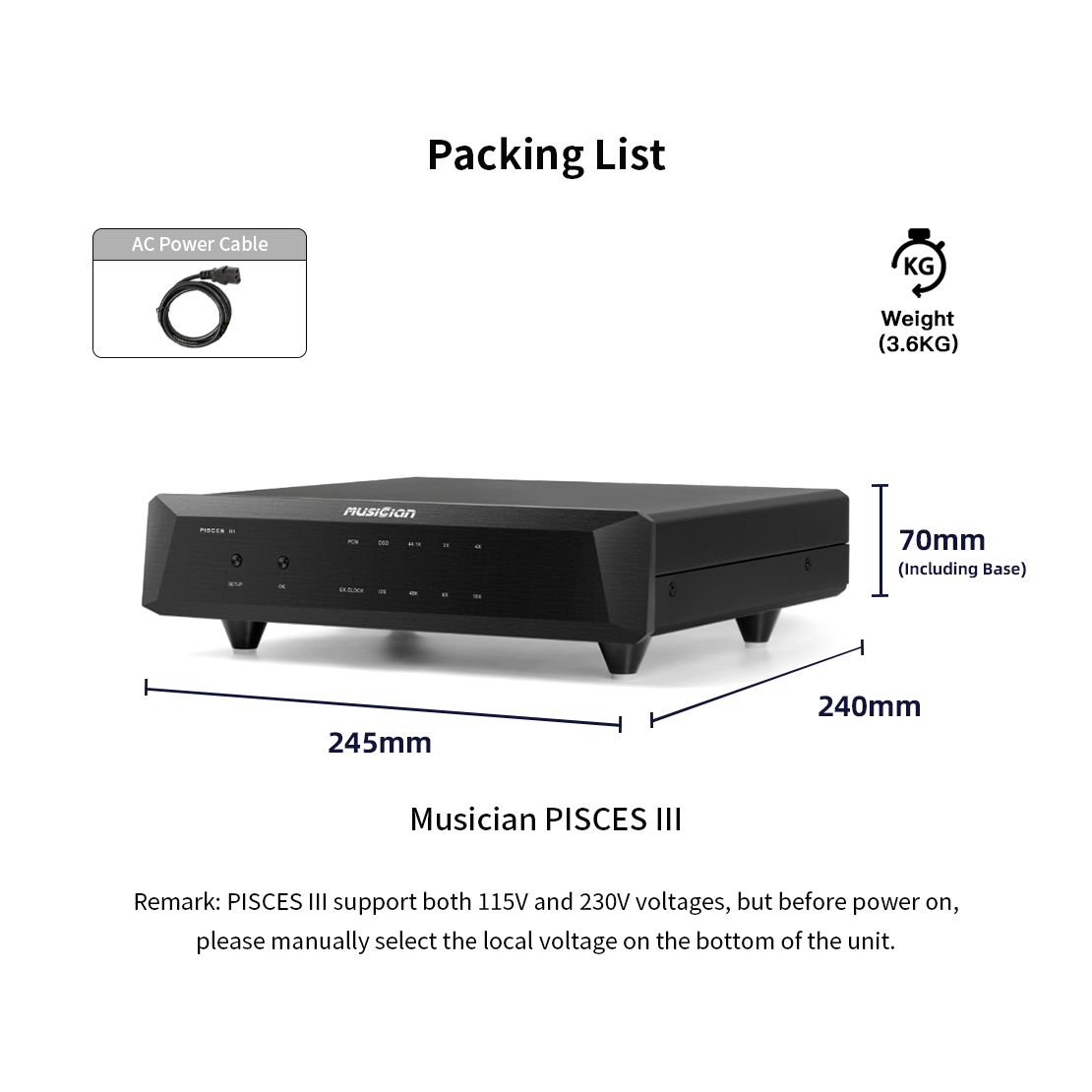

Unit Size:W 250 x D 235 x H 70mm (Height includes base)
Unite Weight:
3.5KG
Packing weight
4.5KG

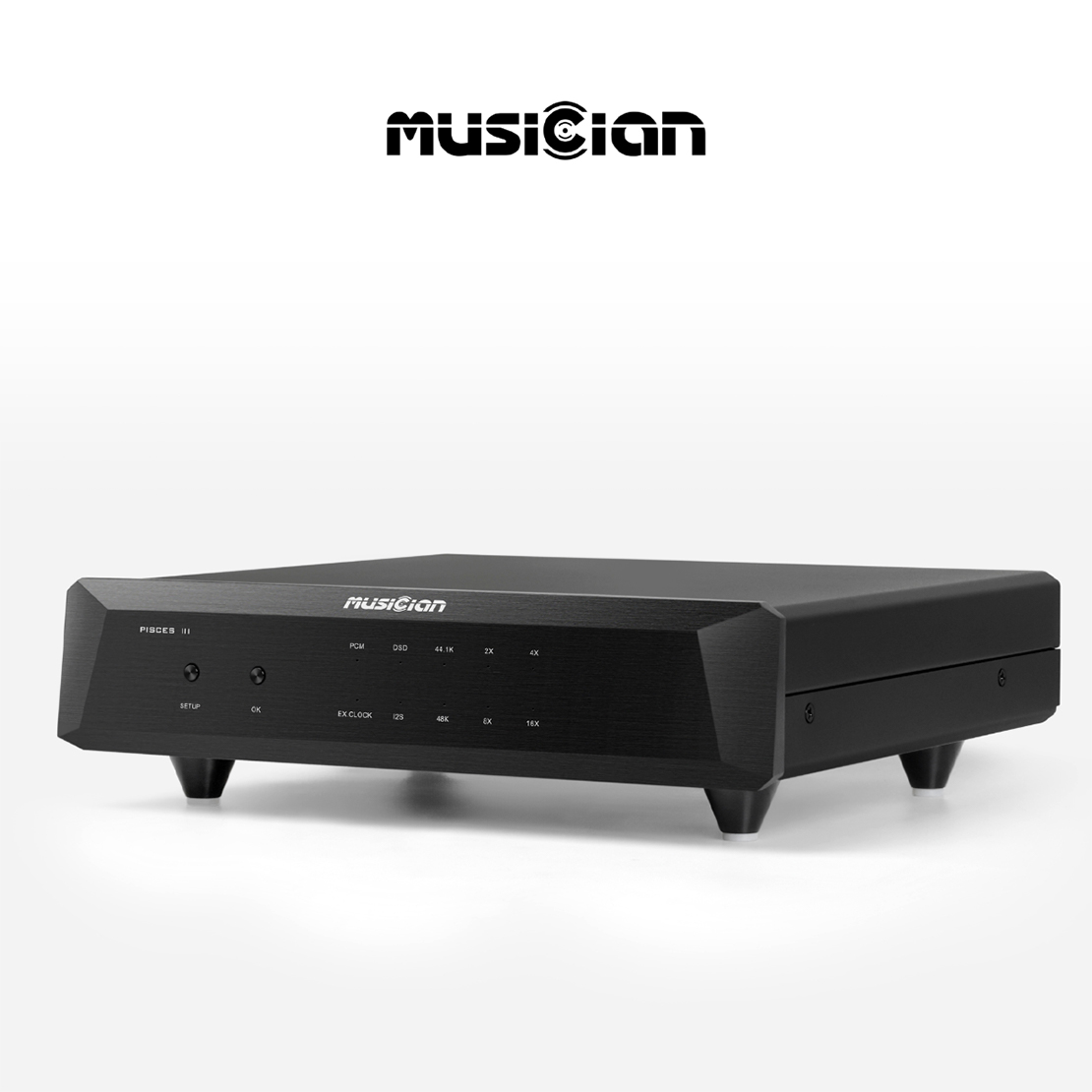

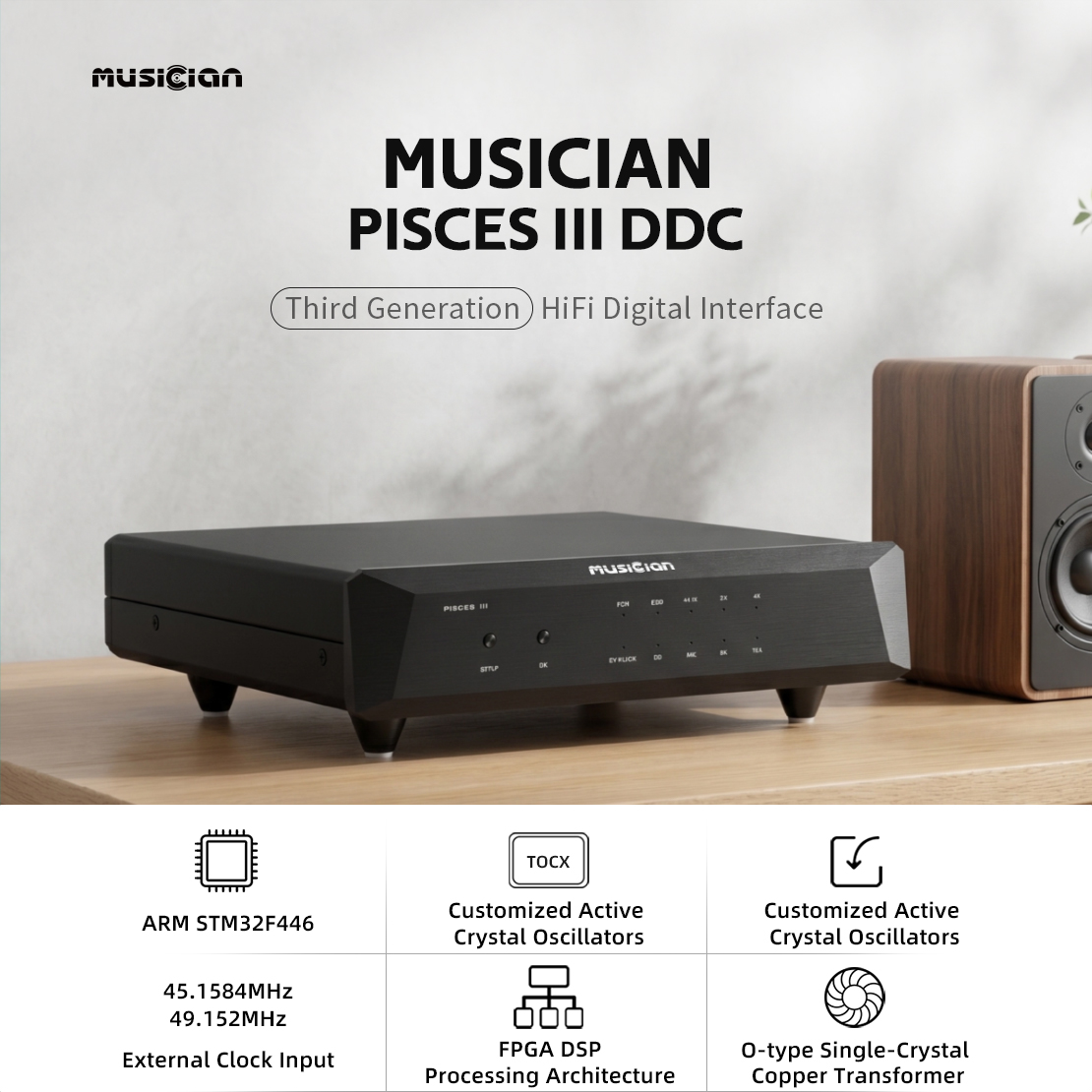

MUSICIAN PISCES II
HIFI digital interface
|
|
